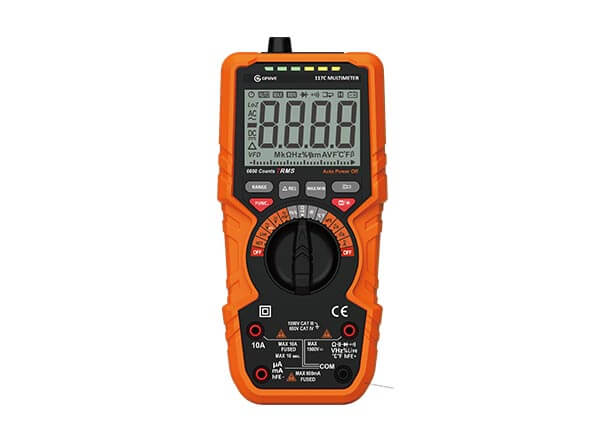

117C Industrial Rms Digital Multimeter
117C is a high-precision true RMS industrial multimeter, which has AC/DC 1000V voltage measurement, 10A AC/DC current measurement, LPF measurement, VDF function, etc.
The main features are fast response, high precision, small size, and easy operation, and product accuracy can still be guaranteed after a 2-meter drop. It is a excellent test tool for electronic and electrical engineers.
It is versatile and suitable for various sectors including electric power, communications, meteorology, railways, oil fields, architecture, metrology, academic institutions, and industrial enterprises. The 117C multimeter have been used many in global market.
Quick Links: Download Catalogue
Application
- Institutions of higher education.
- Smart Grid Application.
- Electrical Measurement.
- Communication company.
- Electrical installation.
- Oil, gas industrial.
- Electronic design.
- Power quality analysis.
- Industrial on site.
Features
- True RMS measurement.
- AC/DC current: 10A.
- AC/DC voltage: 1000V.
- 10MHz/~60MΩ/~60mF.
- High-precision: 6000 counts.
- LoZ, LPF & Auto Volt function.
- Audible & Visual Warning.
- Industrial designed.
- External current clamp supported.
- Compact design, easy & convenient operation.
- Drop test: 2m.
- Overload protection.
- Auto backlight/Flashlight.
Parameters
| Specifications | ||
|---|---|---|
| DC voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+3) |
| AC voltage (V) | 600mV/6V/60V/600V | ±(0.8%+5) |
| 1000V | ±(1.0%+5) | |
| Resistance (Ω) | 600Ω/6KΩ/60KΩ/600KΩ | ±(1.0%+3) |
| 60MΩ | ±(2.0%+3) | |
| Capacitance (F) | 60nF/600nF/6μF/60μF/600μF/6mF | ±(4%+5) |
| 100mF | ±(5%+3) | |
| DC current | 600uA/6mA/60mA/600mA | ±(0.8%+3) |
| 10A | ±(1.2%+3) | |
| AC current | 600uA/6mA/60mA/600mA | ±(1.0%+3) |
| 10A | ±(1.5%+3) | |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+5) |
| Duty cycle (%) | 1%-99% | ±(3.0%+2) |
| Temperature (℃) | -40℃~1000℃ | ±(1%+2) |
| -40℉~1832℉ | ±(1%+2) | |
| Features | ||
| Display count | 6000 | |
| Auto power off | √ | |
| Continuity test | √ | |
| Auto/Manual range | √ | |
| Relative Measurement | √ | |
| Low battery indication | √ | |
| Diode test | √ | |
| Triode test | √ | |
| hFE | √ | |
| Data hold | √ | |
| MAX/MIN measurement | √ | |
| VFD measurement | √ | |
| Flashlight | √ | |
| Live wire detection | √ | |
| NCV Detection | √ | |
| Back Light | √ | |
| Work Light | √ | |
| General Characteristics | ||
| Power | 1.5V battery (AAA) x 3 | |
| Display | 64.3mm x 47.4mm | |
| Product color | Orange and grey | |
| Product net weight | 380g | |
| Product size | 194mm x 90mm x 56mm | |
| Safety standards | EN61010-1, EN61010-2-030, EN61010-2-032, CAT Ⅲ 1000V | |
| Standard accessories | Test leads, batteries, point contact temperature probe | |
| Standard individual packing | Gift box | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 600mm x 280mm x 280mm | |
| Standard carton gross weight | About 15kg | |
