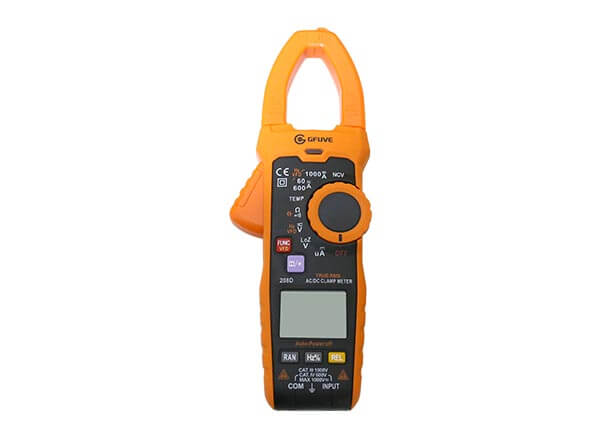

208D 1000a Ac/Dc Digital Clamp Meter
The 208D clips on ammeter are 6000-count digital AC/DC clamp meters with auto range, large LCD, true RMS, auto scale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating and certified by CE/UL/ETL. The 208D clamp meter come with LoZ mode for eliminating 'ghost 'voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current. The 208D clamp meter also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A. According to EN61010-1 CAT IV 600V, CAT III 1000V standard.
It is versatile and suitable for various sectors including electric power, metrology, railways, communications, meteorology, oil fields, architecture, academic institutions, and industrial enterprises. The 208D clamp on meter have been used many in global market.
Application
- Oil, gas industrial.
- Industrial on site.
- Electrical Measurement.
- Smart Grid Application.
- Communication company.
- Electronic design.
- Power quality analysis.
- Electrical installation.
Features
- 6,000 count LCD display.
- 0-1000A AC/DC measurement.
- 40-1kHz frequency (voltage/current).
- AC, AC V+DC V True-RMS measurements.
- Saves measurement data.
- A/D convert fast sampling time.
- Battery capacity indication.
- Date indication.
- Flashlight button: Short press thisbutton to turn on/off the flashlight.
- Inrush current capture.
- NCV Multi-Segment Display and audio/visual alarm.
- True RMS/Auto backlight.
- NCV/Function retention.
- With temperature measurement.
Parameters
| Specifications | ||
|---|---|---|
| AC current (A) | 60A/600A/1000A | ±(2.5%+8) |
| DC current (A) | 60A/600A/1000A | ±(3%+10) |
| AC current frequency response | 10Hz~1kHz | |
| Inrush current (A) | 1000A | ±(10%+10) |
| AC voltage (V) | 6V/60V/600V/1000V | ±(0.8%+5) |
| DC voltage (V) | 6V | ±(0.8%+3) |
| 60V/600V/1000V | ±(0.5%+5) | |
| Low pas filter (LPF ACV) | 600V/1000V | ±(2%+5) |
| LoZ ACV | 600V/1000V | ±(2%+5) |
| Resistance (Ω) | 600Ω | ±(1%+3) |
| 6KΩ/60KΩ/600KΩ | ±(0.8%+3) | |
| 6MΩ/60MΩ | ±(0.8%+3) | |
| Capacitance (F) | 60nF | ±(4%+25) |
| 600nF/6μF/60μF/600μF | ±(4%+3) | |
| 6mF/60mF | ±(10%+9) | |
| Temperature (℃) | -20℃~300℃ | ±(1%+20) |
| 300℃~1000℃ | ±(1%+2) | |
| Low voltage frequency (Hz) | 10Hz~1KHz | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) |
| Features | ||
| Display count | 6000 | |
| Jaw opening | 35mm | |
| Current frequency | 50Hz~60Hz | |
| High voltage frequency | 40Hz~1KHz | |
| Analog bar | 31 | |
| Auto power off | √ | |
| Continuity test | √ | |
| Auto/Manual range | √ | |
| Low battery indication | √ | |
| Diode test | √ | |
| Relative mode/Data hold | √ | |
| MAX/MIN | √ | |
| Function selection | √ | |
| Flashlight | √ | |
| Wake-up function | √ | |
| Auto power off current: ＜50μA | √ | |
| Flexible current probe (optional) | Extends to 3000A | √ |
| Zero mode | √ | |
| Input impedance (ACV/DCV) | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (AAA) x 3 | |
| Display | 43mm x 45mm | |
| Product color | Orange and grey | |
| Product net weight | 380g | |
| Product size | 235mm x 85mm x 40mm | |
| Safety standards | EN61010-1, EN61010-2-032, EN61326, CATIII 1000V | |
| Standard accessories | Test leads, batteries, point contact temperature probe | |
| Standard individual packing | Gift box, carrying bag | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 600mm x 280mm x 280mm | |
| Standard carton gross weight | About 15kg | |
