GF3000 Multi-positions Three Phase Energy Meter Test Bench

Three Phase Energy Meter Test Bench

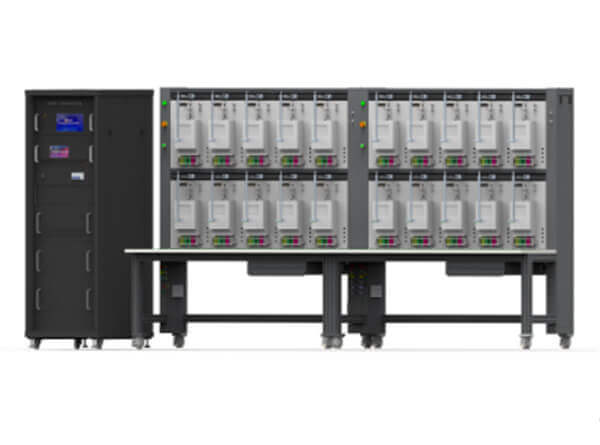

The GF3000 series stationary three phase energy meter test bench is a fully automatic system that enables simultaneous, multi-position calibration and verification of three-phase electric energy meters error. Full compatibility with IEC/EN 60736, excellent parameters, superior functionality and outstanding flexibility, It adopt the most advanced electronic measurement technique and modular concept combine the difference 0.02% three phase reference standards and power amplifier. GF3000 three phase meter test bench is applied in the metrological center of grid company energy metrology department of power supply company and energy management utilities, industrial enterprise and energy meter manufacturers.

Request a quote
Quick Links: Download Catalogue


Features

  • Operate automatically or manually;
  • With Multi-channel server;
  • High resolution of voltage, current and power;
  • Large LCD display and simple interface for operation;
  • Every meter position have error calculation/monitor;
  • Meeting standard ISO17025, IEC/EN 60736 and IR46;
  • 3×120A, 3×380V, accuracy 0.02% or 0.05%;
  • Each meter position with error display in meter rack;
  • 3, 6, 12, 20, 24, 40, 48pcs meter positions optional;
  • High accuracy, 6-digit display the energy relative errors are no more than 0.05%(0. 1%)within the measuring range;
  • High stability of power source which is up to 0.01%/100s and low distortion which is no more than 0.3%;
  • Wide current measuring range from 1mA to 120A which can be automatically switched;
  • Self-check and perfect protection function of overload, short voltage circuit and open current circuit;
  • Installing the ICT in each meter position to test three-phase meters with closed links between the current and voltage measuring circuits (I-P Links) (optional);
  • Equipped with three phase multifunction reference meter and program-conrolled three phase power source which can be separately used and are convenient for testing;
  • With auto PC control verification software;

Functions

  • Able to calibrate all kinds of electronic and inductive three phase kWh meter;
  • Able to perform automatic measurement like shunting, basic errors, standard deviation, and etc;
  • Full automatic, semi automatic and manual operation available;
  • Supporting bar code input, which increase the efficiency of input;
  • Forward and reverse active energy / forward and reverse reactive energy error test;
  • Creeping and starting test;
  • Standard deviation, 24 hour variation test;
  • Timing error test;
  • Influencing quantity test of voltage, frequency, harmonic;
  • Calibration and verification of pulse constant;
  • Testing energy registers (dial test) and maximum demand indicator;
  • Able to check the same type meters with different constants;
  • Able to print out all kinds of test reports with the standard forms;
  • Able to test voltage, current, active/reactive/apparent power, phase, power factor, frequency, and etc;
  • Able to display waveform of voltage and current able to set 2nd-51st harmonic of voltage and current, measure the waveform distortion and harmonic content, and display harmonic chart;
  • Equipped with RS232 communication port;


Parameters

Electrical parameters　
Accuracy 0.02%, 0.05%, 0.1%
Power Supply AC 180-265V, or 3×220/380V±15%, frequency 50/60Hz.
AC Voltage Output
Range(U1, U2, U3) 57.7V, 100V, 220V, 380V (max 480V)
Adjustment range (0-120)%RG(1)
Adjustment fineness 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability 0.01%/120s
Distortion 0.3% (Non-capacitive load)
Output load 1500VA
Measuring accuracy 0.02%RG or 0.05% RG
AC Current Output
Range(I1,I2,I3) 0.1A, 0.25A, 0.5A, 1A, 2.5A, 5A, 10A, 25A, 50A, 100A, 120A
Adjustment range (0-120)%RG
Adjustment fineness 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability <0.01%/120s
Distortion ≤0.3% (Non-capacitive load)
Output load 1500VA
Accuracy 0.02%RG or 0.05% RG
Power Output
Active power output stability <0.01%RG/120s
Reactive power output stability <0.02%RG/120s
Active power measuring accuracy 0.02%RG or 0.05% RG
Reactive power measuring accuracy 0.1%RG
Phase Output
Output adjustment range 0°-359.999°
Output adjustment fineness 10, 1, 0.1, 0.01 as optional.
Resolution 0.01°
Accuracy 0.02° or 0.05°
Power Factor
Adjustment range -1 ~ 0 ~ 1
Resolution 0.0001
Measurement accuracy 0.0005
Frequency Output
Adjustment range 40Hz-70Hz
Output adjustment fineness 5Hz, 1Hz, 0.1Hz, 0.01Hz as optional.
Resolution 0.001Hz
Accuracy 0.002Hz
Voltage /Current/Harmonic Setting
Harmonic number 2-51times
Harmonic content 0-40%
Harmonic phase 0-359.99
Harmonic setting accuracy (10%±0.1%)RD(2)
Power Energy Measurement Error
Active power energy 0.02%RG or 0.05% RG
Reactive power energy 0.1%RG
Power Pulse Output
Power pulse type active pulse, reactive pulse
Active power pulse output 5V, 10mA
Pulse output frequency Max 50kHz
Power Pulse Input
Pulse constant set range (1--599999999)/kwh
Energy pulse type support active and reactive pulse, the highest frequency power pulse input is 200KHz.
Meter Position
Position 3, 6, 12, 20, 24, 40, 48pcs meter
Standard
Standard IEC 62053-21,22, 23; IEC 60736; ANSI C12.20-2002;
JJG 597-2005; JJG596-2012; JJG 1085-2013; JJF 68-2019;
DL/T 826-2002; DL/T 1478-2015; DL/T 448-2016;
EN 50470-1, EN 50470-2, EN-50470-3; IEC 61010;
Safety
Isolation protection IEC 61010-1:2001
Measurement Category 300 V CAT III, 600 V CAT II
Degree of protection IP20
Declaration of conformity CE & CNAS certified
Mechanical parameters
Dimensions (mm) Cabinet size: 800 * 600 * 1850mm (L * W * H).
Bench size: 2400 * 760 * 1846mm (L * W * H).
Weight (kg) About 235
Environmental conditions
Ambient temperature 0°C to +40°C
Relative humidity 35%-85%
(1) RG means range, the same as below;
(2) RD means the setted harmonic content, harmonic can be a single output, also multiple output.
